Pools and lanes

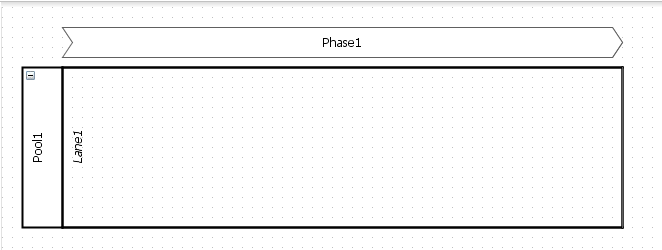

BPMN offers the construct of pools and swim lanes to better organize activities in a process model. They allow the mapping of roles, responsibilities and organizational structures. Two basic types are differentiated:

  • Pools – are used for limiting the process participants at a higher level of abstraction and generally represent an organization.

  • Lanes – sub divide pools and allow a structuring of organizations by roles or responsibilities within the organization.

A process will always belong to one pool, an action or task to one lane.

A pool cannot be nested with any other pool. A lane can only be integrated into an existing pool. lanes can also not be nested into other lanes.

Pools and lanes can both be minimized for a better overview.
