Info tile - Sales funnel
Type
Desktop tile |
|
|---|---|
Entity tile |
available for the following entities: Products |
Description

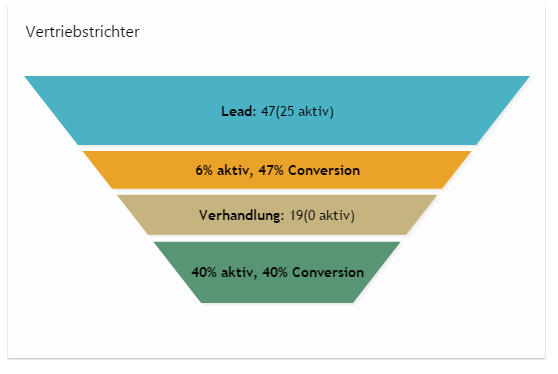

The info tile “Sales funnel” shows all sales chances of the current year in a funnel diagram, divided into four phases:
Lead – all sales chances/inquiries representing potentially interested persons.
Person interested: – all sales chances/ inquiries where an interest was already expressed.
Negotiation – all sales chances/ inquiries where negotiations already take place.
Contract – all sales chances/ inquiries where contracts were signed, thus, a customer was acquired.
Configuration
The searches serve for mapping between sales chances-/Quote status keys and the four phases of the sales funnel. By adaptations of the searches own key mappings can be created.
Example:
Phase | Standard key | Search | |||||
|---|---|---|---|---|---|---|---|
Desktop widget | Entity widget | ||||||
Lead | Received inquiry | SalesFunnel_Lead | SalesFunnel_Product_Lead | ||||
Person interested | Councling | Calculation | SalesFunnel_Prospect | SalesFunnel_Product_Prospect | |||
Negotiation | Quote at customer | Negotiation phase | SalesFunnel_Offering | SalesFunnel_Product_Offering | |||
Contract | Conclusion of contract | Financing | Setup | Delivery | Completed | SalesFunnel_Customers | SalesFunnel_Product_Customers |
Sales chances-/Inquiry searches need to be configured before usage of the sales funnel to be able to display data. The searches behind own the search field Status, containing the status criteria for the current funnel phase. Fill these with the keys you use, matching the respective phase.
The searches for the desktop globally search for sales chances/inquiries, while the searches for the product search for sales chances/inquiries created for that product.
Lead search (Desktop) | Here the precise name of the previously defined lead search to use the info tile on the desktop is stored. |
|---|---|
Person interested search (Desktop) | Here the precise name of the previously defined person interested search to use the info tile on the desktop is stored. |
Negotiation search (Desktop) | Here the precise name of the previously defined negotiation search to use the info tile on the desktop is stored. |
Contract search (Desktop) | Here the precise name of the previously defined contract search to use the info tile on the desktop is stored. |
Lead search (Product) | Here the precise name of the previously defined lead search to use the info tile on the entity products is stored. |
Person interested search (Product) | Here the precise name of the previously defined person interested search to use the info tile on the entity products is stored. |
Negotiation search (Product) | Here the precise name of the previously defined negotiation search to use the info tile on the entity products is stored. |
Contract search (Product) | Here the precise name of the previously defined contract search to use the info tile on the entity products is stored. |
Example
Lead search (desktop) | C0IB_SalesFunnel_Lead |
|---|---|
Person interested search (Desktop) | C0IB_SalesFunnel_Prospect |
Negotiation search (Desktop) | C0IB_SalesFunnel_Offering |
Contract search (Desktop) | C0IB_SalesFunnel_Customers |
Lead search (product) | C0IB_SalesFunnel_Product_Lead |
Person interested search (Product) | C0IB_SalesFunnel_Product_Prospect |
Negotiation search (Product) | C0IB_SalesFunnel_Product_Offering |
Contract search (Product) | C0IB_SalesFunnel_Product_Customers |
